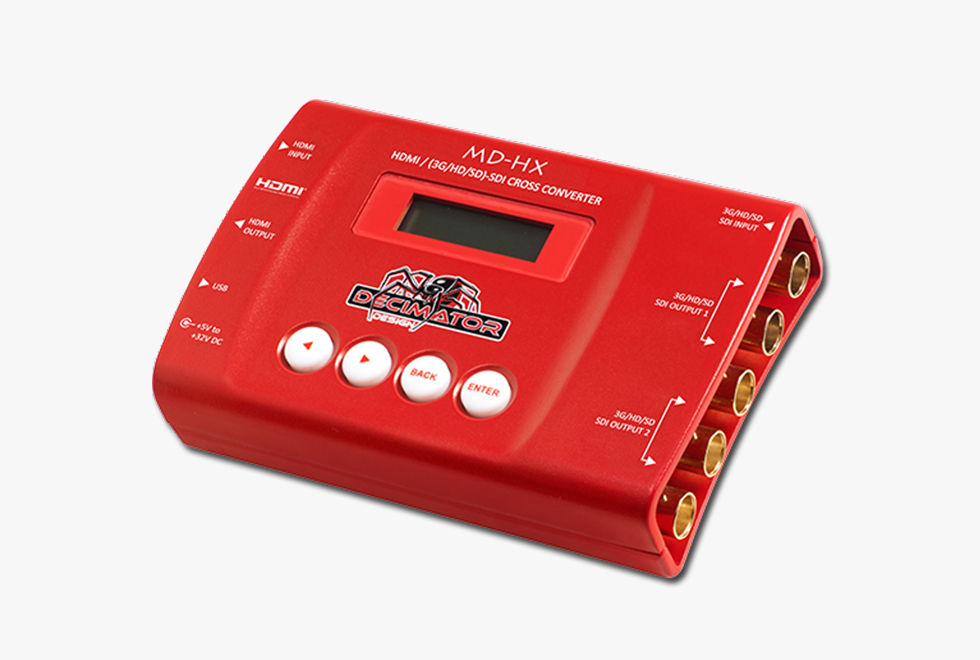

MD-HX

DECIMATOR

HDMI / SDI CROSS CONVERTER

Go next

12G-CROSS

HDMI / SDI CROSS CONVERTER
with Scaling, Frame Rate Conversion, Overlays,
Video Test Pattern Generator and Audio Tone Generator

1) Supports both 3G level A and B on the input and output. Allowing conversion between A and B.

2) Horizontal and/or Vertical image flipping via the built in scaler.

3) 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.

4) Horizontal and/or Vertical image flipping via the built in scaler.

5) Features the following 14 modes:

SDI IN to HDMI and SDI OUT
SDI IN to SDI OUT and HDMI IN to HDMI OUT
SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
HDMI IN to SDI OUT and SDI IN to HDMI OUT
HDMI IN to HDMI and SDI OUT
HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
Scaled SDI IN to HDMI and SDI OUT
Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
Scaled HDMI IN to HDMI and SDI OUT

6) Professional 3G/HD/SD Test Pattern Generator featuring:

26 Selectable Output Formats
54 Test Patterns including Luma and Chroma Zone-plates

7) Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

8) The MD-CROSS is a truly portable converter, that incorporates a new easy to use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.

9) This unit also includes:
